| S. No | Description | Specification |
|---|---|---|
| 1. | Frequency Range | a. Band-1 : 1559-1610MHz (GPS L1) b. Band-2 : 2400-2500MHz c. Band-3 : 5700-5900MHz |
| 2. | Power Supply | 28V DC Internal (Battery) can give backup for 1 hr 28V DC Internal |
| 3. | Antenna | Omni or Directional with 3dBi gain |
| 4. | Indications | DC ON. RF ON. VSWR, Thermal and low Battery |
| 5. | Operation Conditions | Standard Indian Conditions |
| 6. | Weight | 2 Bands-10kg 3 Bands-13-15kg |

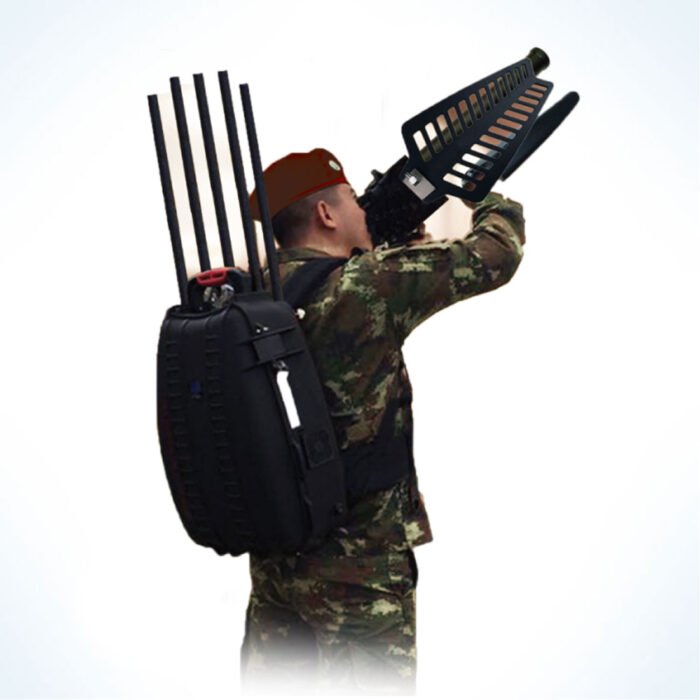

Anti-Drone System Manpack
❖ The system consists of 2 or 3 bands of power amplifiers with directional antenna.
❖ The effective jamming range of the system is up to 1.5kms.
❖ System operates on internal battery for up to 1Hr and also can be operated on external DC
❖ It can effectively jam “pre-fed flight path also” and negates the possible damage to own assets
❖ System confirms IP65 standards
Enquiry about Anti-Drone System Manpack
Description
Related products
Vehicle Jammer
❖ The system is comprised of multiple bands. Initially for the two bands in L and C respectively.
❖ The operating frequencies are 1.0-2.0 GHz and 5.7-5.9 GHz with a power
❖ output of 100W from each module.
❖ The size of the system is specified with a 2U rack unit. With all controls present.
❖ The operation of the system is done with a 24V battery unit.
| S. No | Description | Specification |
|---|---|---|
| 1. | Frequency Range | 1.0-2.0 GHz 5.7-5.9 GHz |
| 2. | Power Supply | 24V Battery |
| 3. | Antenna | Omnidirectional |
| 4. | Indications | VSWR |
| 5. | Size | Standard 2U module |
| 6. | Weight | <15kg |
| 7. | Power Output | 100W |
Manpack Jammer
❖ The System consists of 3 bands of the power amplifier with two Omnidirectional antennas.
❖ The system operates on a battery 24V which is rechargeable.
❖ It is used for effective jamming of IEDs, Radio operated IEDs.
❖ System confirms to IP standard for usability.
❖ The operation of this system will be in the dense forest area for patrolling by the Indian army personnel.
❖ The system is designed and inserted in a backpack with miniature housing developed for the same.
❖ The antenna used is capable of bending completely in either direction To withstand the ruggedness required.
Classroom Jammer
❖ The system consists of 7 bands split from the power amplifier with separate patch antennas for the application.
❖ Effective power output from the system is maintained at 7W at the output to the antenna.
❖ The system is operated with a 24V battery and it can also be operated with a DC supply as well.
❖ The System confirms the standard IP terms.
❖ Effective range is confined to a small room area for the jamming application.
❖ The antennas are mounted on the same housing with all of them being connected to the power output from the power amplifier source.
❖ In the system the noise source being used is combining the synthesizer with PLL.
